Mount Your RE2000 Time Clock

Easily mount your RE2000 time clock to a wall in a convenient location for ease of access using the steps below.

Included with your time clock, you will find:

• A metal back plate
• Four drywall anchors
• Four screws
• Two small bracket screws.

You will need your own Phillips-head screwdriver.

To mount your RE2000:

1. Select a location for your time clock near a power outlet.
2. Place the provided template against the wall.
3. Drill holes through the targets using a 1/4 inch (6.35mm) drill bit.
4. Insert the provided drywall anchors if needed.
   Note: You may need alternate mounting hardware depending on your wall material.

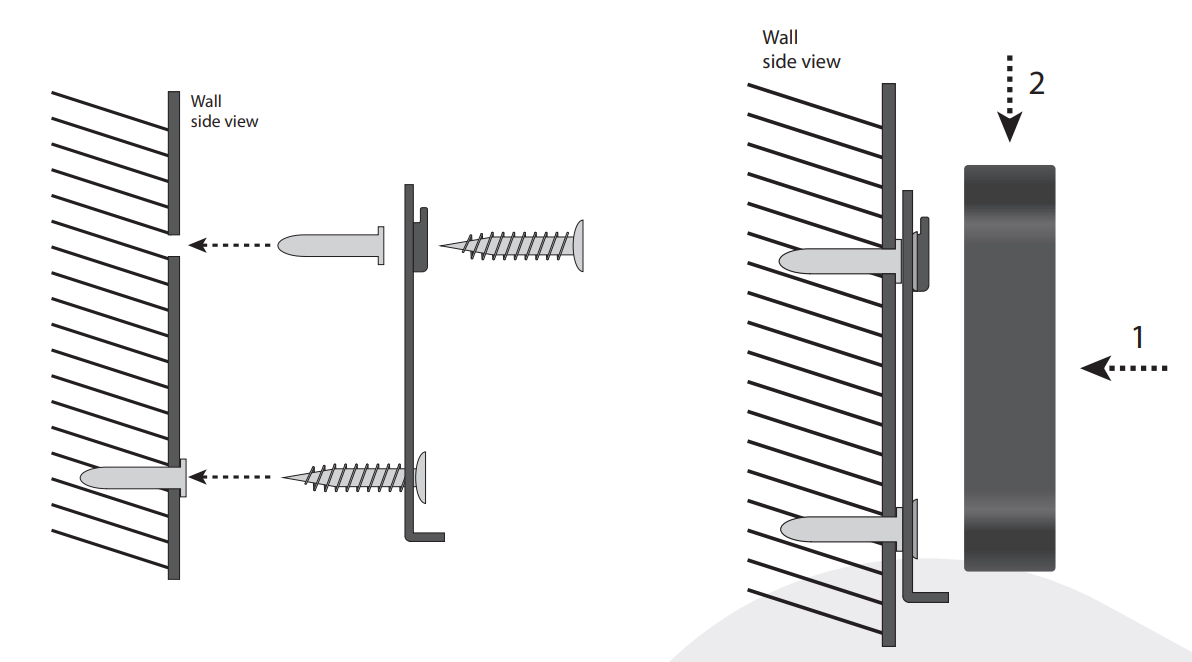

5. Align the metal back plate with the holes with the prongs facing away from the wall.
6. Secure the back plate to the wall with the included screws.
7. Attach the power adapter (if you have not already).
8. Align the two slots on the back of the clock with the two prongs on the back plate. Push down slightly to ensure the clock is securely fastened.
9. Optional: Screw the time clock to the metal back plate with the included bracket screws at the bottom of the time clock.
